If you're facing a servo motor failure, understanding whether you're dealing with an AC or DC system is the critical first step. The repair approach, common failure points, and even safety protocols differ significantly between these two motor technologies. This guide breaks down the key differences to help you make informed decisions and ensure your machinery gets back online correctly and safely.

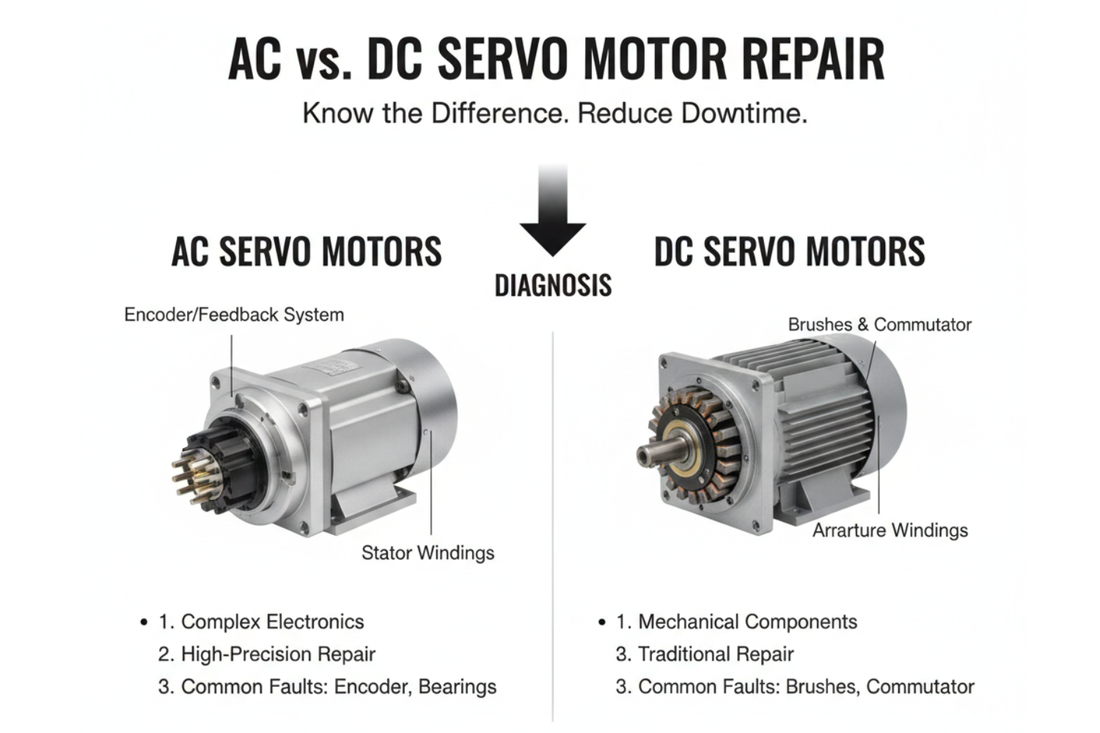

Core Technology & Internal Components

The fundamental difference lies in how they create motion.

AC Servo Motors are powered by alternating current. They rely on a stator (stationary winding) that creates a rotating magnetic field. The rotor, often containing permanent magnets, follows this field. Their operation is tightly synchronized with a sophisticated drive that controls phase and frequency. Failures here frequently involve complex encoder/feedback systems, bearing insulation (due to shaft currents), and stator winding insulation breakdowns from voltage spikes.

DC Servo Motors run on direct current. They use brushes and a commutator to transfer power to the rotor's windings. This creates physical contact to switch the current direction and produce rotation. Repair often centers on this mechanical commutation system. The most common failures are brush wear, commutator arcing and scoring, and rotor (armature) winding issues.

Common Failure Points & Diagnostic Focus

AC Servo Repair:

Diagnostics focus on electronics and magnetism.

Encoder/Resolver Failure: Loss of position feedback is a top culprit.

Bearing Fluting: Caused by electrical discharge through bearings, a unique AC drive-related issue.

Stator Burnouts: Often from overload, insulation breakdown, or drive faults.

Demagnetization: Rare but catastrophic damage to rotor magnets from extreme overheating or physical shock.

DC Servo Repair:

Diagnostics are often more mechanical/electrical.

Brush and Commutator Wear: The #1 maintenance item. Leads to arcing, poor speed control, and debris.

Armature (Rotor) Faults: Windings can short, open, or become unbalanced.

Field Magnet Issues: Loss of magnetic strength in older wound-field motors.

Bearing Wear: Standard mechanical wear is a common failure point.

Repair Process & Specialization

Repairing an AC servo is a high-precision task. It requires specialized equipment to dynamically balance the rotor, test high-speed encoders, and reprogram drives. Insulation systems must handle high-frequency pulses from modern AC drives. DC servo repair, while still skilled, often involves more traditional motor repair techniques like commutator undercutting, turning, and mica machining, alongside precision armature winding.

Critical Safety Warning:

Servo motors are integrated with drives and high-voltage power supplies. Never attempt internal repair without locking out/tagging out all power sources. Capacitors can hold lethal charges long after power is disconnected. Furthermore, improper handling of the rare-earth magnets in AC servos can cause serious injury or further damage the unit. Always consult a professional.

Making the Repair Decision with Industrial Automation Repair

When choosing between repair and replacement, consider:

Age & Obsolescence: DC parts are becoming harder to find.

Cost: DC brush/commutator repair is often less costly than complex AC encoder/stator work, but frequent brush replacement adds up.

Performance Needs: AC servos offer higher performance; repairing an old DC motor for a demanding application may not be cost-effective.

Why Trust Industrial Automation Repair with Your Servo Motor?

At Industrial Automation Repair, we don't just fix motors—we solve industrial downtime problems. Our expertise is built on the E-E-A-T principles Google prioritizes:

Experience: Our certified technicians have decades of hands-on experience with both legacy DC and modern AC servo systems across brands like Siemens, Fanuc, and Yaskawa.

Expertise: We maintain a full suite of specialized equipment, including balancing machines, encoder test stands, and surge testers, to meet the unique demands of each motor type.

Authoritativeness: We contribute to industry technical forums and provide manufacturer-accurate documentation with every repair.

Trustworthiness: Our process is transparent. You receive detailed diagnostic reports, upfront quotes, and a robust warranty on all repairs.

The Bottom Line: While DC servo repair focuses on mechanical commutation, AC servo repair is a high-precision electronic and magnetic discipline. Understanding this distinction ensures your motor receives the correct repair, restoring reliability and performance to your operation.
